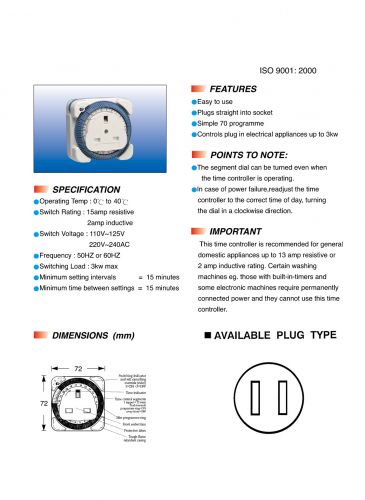

INTRODUCTION

  • Easy to use
  • Plugs straight into socket
  • Simple 70 programme
  • Controls plug in electrical appliances up to 3kw

产品叙述
SPECIFICATIONS
  • Operating Temp : 0℃to 40℃
  • Switch Rating : 15amp resistive, 20amp inductive
  • Switch Voltage : 110V~125V, 220V~240V
  • Frequency : 50Hz or 60Hz
  • Switching Load : 3kw max
  • Minimum setting intervals = 15 minutes
  • Minimum time between settings = 15 minutes
POINT TO NOTE
  • The segment dial can be turned even when the time controller is operating.
  • In case of power failure, readjust the time controller to correct time of day, turning the dial in clockwise direction.
IMPORTANT
This time controller is recommended for general domestic appliances up to 13 amp resistive or 2 amp inductive rating. Certain washing machines eg. those with built-in-timers and some electronic machines require permanently connected power and they cannot use this time controller.
