Relais de Protection de Tension VP-002

Relais de Protection de Tension VP-002
Relais de Protection de Tension VP-002

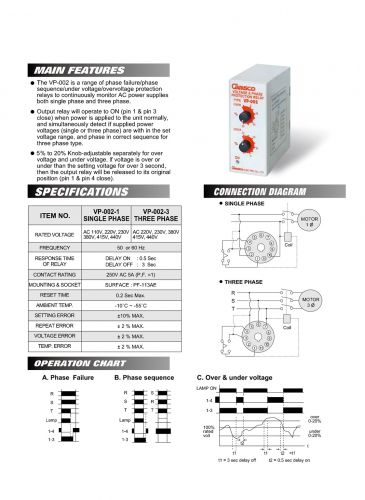

INTRODUCTION
 The VP-002 is a range of phase failure/phase sequence/under voltage/overvoltage protection relays to continuously monitor AC power supplies both single phase and three phases.

Inquiry
Back
Description du produit
FURTHER INFORMATION
  • Output relay will operate to ON (pin 1 & pin 3 close) when power is applied to unit normally, and simultaneously detect if supplied power voltage rang, and phase in correct sequence for three phase type.
  • 5% to 20% Knob-adjustable separately for over voltage and under voltage. If voltage is over or under than the setting voltage for over 3 second, then the output relay will be released to its original position (pin 1 & pin 4 close).
SPECIFICATIONS
Item NO :
  • VP-002-1 SINGLE PHASE
    Rated voltage : AC 110V, 220V, 230V, 380V, 415V, 440V
    Frequency : 50 or 60 Hz
    Response time of relay : Delay ON 0.5 Sec / Delay OFF 3 Sec
    Contact rating : 250V AC 5A (P.F. =1)
    Mounting & socket : Surface PF-113AE
    Rest time : 0.2 Sec MAX
    Ambient temp : -10℃~-55℃
    Setting error : ±10% MAX
    Repeat error : ±2% MAX
    Voltage error : ±2% MAX
    Temp error : ±2% MAX
  • VP-002-3 THREE PHASE
    Rated voltage : AC 220V, 230V, 380V, 415V, 440V
    Frequency : 50 or 60 Hz
    Response time of relay : Delay ON 0.5 Sec / Delay OFF 3 Sec
    Contact rating : 250V AC 5A (P.F. =1)
    Mounting & socket : Surface PF-113AE
    Rest time : 0.2 Sec MAX
    Ambient temp : -10℃~-55℃
    Setting error : ±10% MAX
    Repeat error : ±2% MAX
    Voltage error : ±2% MAX
    Temp error : ±2% MAX
