INTRODUCTION

  • MD SERIES (SLOT 8mm)
  • KD SERIES (SLOT 6mm)
  • HD SERIES (SLOT 4mm)
  • VD SERIES (SLOT 8mm)
  • HVD SERIES (SLOT 4mm)
  • VCD SERIES (SLOT 8mm)
  • AD SERIES (SLOT 8mm) / SD SERIES (SOLID)
  • BD SERIES (SLOT 4mm)

Descripción del producto
SPECIFICATIONS

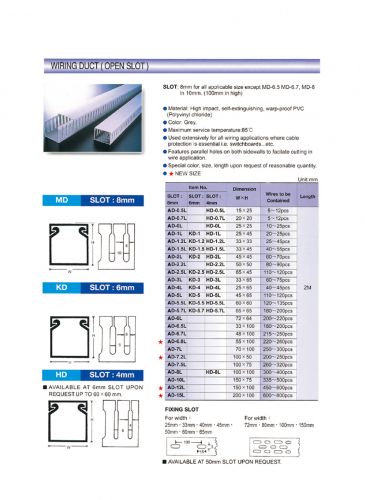

  • MD SERIES (SLOT 8mm) / KD SERIES (SLOT 6mm) / HD SERIES (SLOT 4mm)
    SLOT : 8mm for all applicable size except MD-6.5, MD-6.7, MD-8 in 10mm. (100mm in high)
    - Material : High impact, self-extinguishing, warp-proof PVC (Polyvinyl chloride)
    - Color : Grey
    - Maximum service temperature : 85℃
    - Used extensively for all wiring applications where cable protection is essential i.e. switchboards ...etc.
    - Features parallel holes on both sidewalls to facilitate cutting in wire application.
    - Special color, size, length upon request of reasonable quantity.
    - Fixing Slot : For wide 25mm, 33mm, 40mm, 45mm, 50mm, 60mm, 65mm, 72mm, 80mm, 100mm, 150mm (Available at 50mm SLOT UPON REQUEST)
    - Item NO :
    MD SERIES
    AD-0.5L, AD-0.7L, AD-0L, AD-1L, AD-1.2L, AD-1.5L, AD-2L, AD-2.2L, AD-2.5L, AD-3L, AD-4L, AD-5L, AD-5.5L, AD-5.7L, AD-6L, AD-6.5L, AD-6.7L, AD-6.8L, AD-7L, AD-7.2L, AD-7.5L, AD-8L, AD-10L, AD-12L, AD-15L
    KD SERIES
    KD-1, KD-1.2, KD-1.5, KD-2, KD-2.5, KD-3, KD-4, KD-5, KD-5.5, KD-5.7
    HD SERIES
    HD-0.5L, HD-0.7L, HD-0L, HD-1L, HD-1.2L, HD-1.5L, HD-2L, HD-2.2L, HD-2.5L, HD-3L, HD-4L, HD-5L, HD-5.5L, HD-5.7L, HD-8L
  • VD SERIES (SLOT 8mm) / HVD SERIES (SLOT 4mm)
    Item NO :
    VD SERIES
    VD-1, VD-2, VD-3, VD-4, VD-5, VD-5.5, VD-5.7, VD-6, VD-7, VD-8, VD-9, VD-9.5, VD-9.6, VD-9.65, VD-9.66, VD-9.7, VD-9.8, VD-10, VD-10.5, VD-11, VD-12
    HVD SERIES
    HVD-1, HVD-2, HVD-3, HVD-4, HVD-5, HVD-5.5, HVD-5.7, HVD-6, HVD-7, HVD-8, HVD-9, HVD-9.5, HVD-9.6, HVD-9.65, HVD-9.66, HVD-9.7, HVD-9.8, HVD-10, HVD-10.5, HVD-11, HVD-12
  • VCD SERIES (SLOT 8mm)
    - Close slot design facilitate easy installation or removal of cover.
    - Cut optionally wherever wire insertion/extension is necessary.
    - Item NO :
    VCD-2530, VCD-2560, VCD-4040, VCD-4060, VCD-4080, VCD-5050, VCD-6060, VCD-6080, VCD-8080, VCD-100100

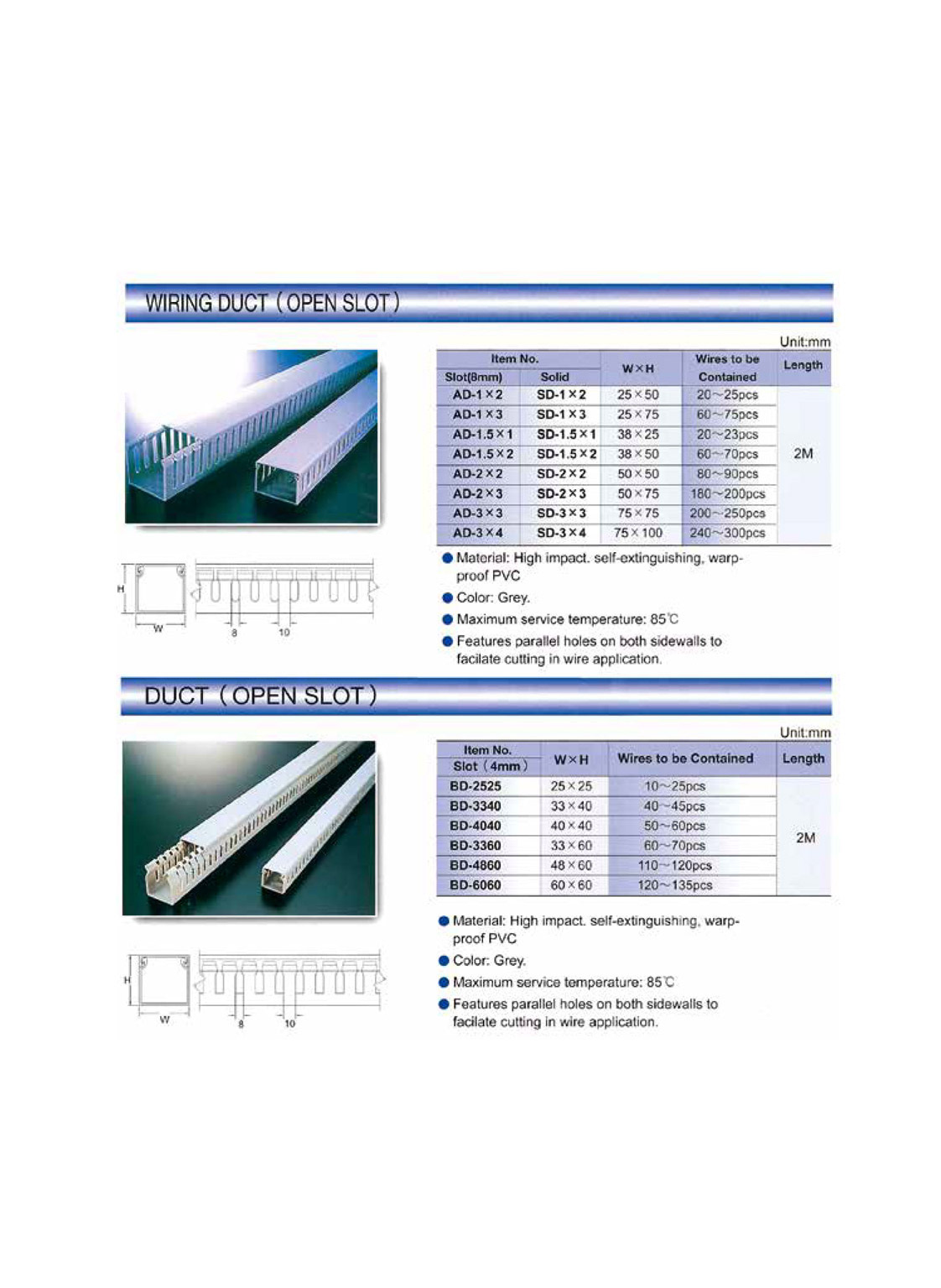

  • AD SERIES (SLOT 8mm) / SD SERIES (SOLID)
    - Material : High impact. Self-extinguishing, warp-proof PVC
    - Color : Grey
    - Maximum service temperature : 85℃
    - Features parallel holes on both sidewalls to facilitate cutting in wire application.
    - Item NO :
    AD SERIES
    AD-1X2, AD-1X3, AD-1.5X1, AD-1.5X2, AD-2X2, AD-2X3, AD-3X3, AD-3X4
    SD SERIES (SOLID)
    SD-1X2, SD-1X3, SD-1.5X1, SD-1.5X2, SD-2X2, SD-2X3, SD-3X3, SD-3X4
  • BD SERIES (SLOT 4mm)
    - Material : High impact. Self-extinguishing, warp-proof PVC
    - Color : Grey
    - Maximum service temperature : 85℃
    - Features parallel holes on both sidewalls to facilitate cutting in wire application.
    - Item NO :
    BD-2525, BD-3340, BD-4040, BD-3360, BD-4860, BD-6060
