Fuse Base

INTRODUCTION

Fuse Base Item
▶ RT18-32 / RT18-32X / RT18-32A / RT18-32 / RT18-63
▶ FS-10 / FS-101 / FS-102

Inquiry

Back

Ürün Açıklaması

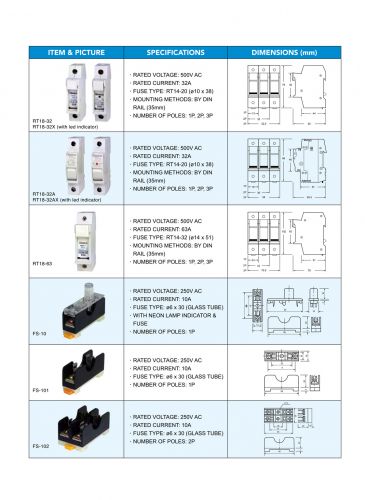

SPECIFICATIONS

FUSE BASE Item NO :

▶ RT18-32 / RT18-32X (with led indicator)
Rated voltage : 500V AC
Rated current : 32A
Fuse type : RT14-20 (Ø10 x 38)
Mounting methods : By din rail 35mm
Number of poles : 1P, 2P, 3P

▶ RT18-32A / RT18-32AX (with led indicator)
Rated voltage : 500V AC
Rated current : 32A
Fuse type : RT14-20 (Ø10 x 38)
Mounting methods : By din rail 35mm
Number of poles : 1P, 2P, 3P

▶ RT18-63
Rated voltage : 500V AC
Rated current : 63A
Fuse type : RT14-32 (Ø14 x 51)
Mounting methods : By din rail 35mm
Number of poles : 1P, 2P, 3P

▶ FS-10
Rated voltage : 250V AC
Rated current : 10A
Fuse type : Ø6 x 30 (Glass tube)
With neon lamp indicator & fuse
Number of poles : 1P

▶ FS-101
Rated voltage : 250V AC
Rated current : 10A
Fuse type : Ø6 x 30 (Glass tube)
Number of poles : 1P

▶ FS-102
Rated voltage : 250V AC
Rated current : 10A
Fuse type : Ø6 x 30 (Glass tube)
Number of poles : 2P
