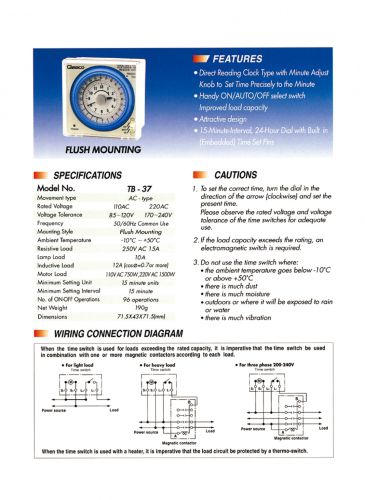

24小時自動定時開關 TB-37 首頁產品介紹定時開關24小時自動定時開關 TB-37 24小時自動定時開關 TB-37 INTRODUCTION Direct Reading Clock Type with Minute Adjust Knob to Set Time Precisely to the Minute Handy ON/AUTO/OFF select switch. Improved load capacity Attractive design 15-Minute-Interval, 24-Hour Dial with Built in (Embedded) Time Set Pins 詢價 返回 無現貨, 預訂請留言 產品敘述 SPECIFICATIONS Model No. : TB-37 Movement type : AC type Rated Voltage : 110AC / 220AC Voltage Tolerance : 85-120V / 170-240V Frequency : 50/60Hz Common use Mounting Style : Flush Mounting Ambient Temperature : -10℃ ~ +50℃ Resistive Load : 250V AC 15A Lamp Load : 10A Inductive Load : 12A (cosφ=0.7 or more) Motor Load : 110V AC 750W, 220V AC 1500W Minimum Setting Unite : 15 minute units Minimum Setting Interval : 15 minute No. of ON-OFF Operations : 96 operations Net Weight : 190g Dimensions : 71.5 x 43 x 1.5 mm CAUTIONS To set correct time, turn the dial in the direction of the arrow (clockwise) and set the present time. Please observe the rated voltage and voltage tolerance of the time switches for adequate use. If the load capacity exceeds the rating, an electromagnetic switch is required. Do not use the time switch where :- the ambient temperature goes below -10℃ or above +50℃- there is much dust- there is much moisture- outdoors or where it will be exposed to rain or water- there is much vibration
