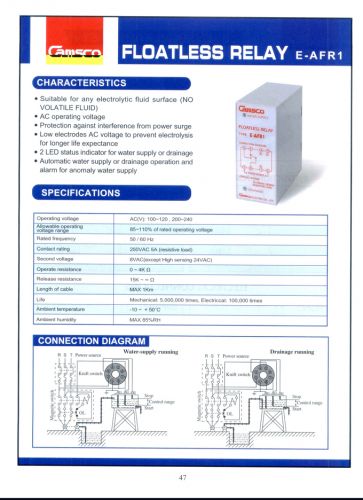

Floatless Relay E-AFR1 HomeProductsFloatless Level ControllerFloatless Relay E-AFR1 Floatless Relay E-AFR1 INTRODUCTION Suitable for any electrolytic fluid surface (No Volatile Fluid). AC operating voltage. Protection against interference from the power surge. Low electrodes AC voltage to prevent electrolysis for longer life expectancy. 2 LED status indicator for water supply or drainage. Automatic water supply or drainage operation and alarm for anomaly water supply. Inquiry Back Out of stock., contact us Product Description SPECIFICATIONS Operating voltage : AC 100V ~ 120V, 200V ~ 240V Allowable operating voltage range : 85 ~ 110% of rated operating voltage Rated frequency : 50/60Hz Contact rating : 250VAC 5A (resistive load) Second voltage : 0 ~ 4KΩ Release resistance : 15K ~ ∞Ω Length of cable : MAX 1Km Life : Mechanical 5,000,000 times / Electrical 100,000 times Ambient temperature : -10 ~ 50℃ Ambient humidity : MAX 85% RH
