Control Unit EB Series

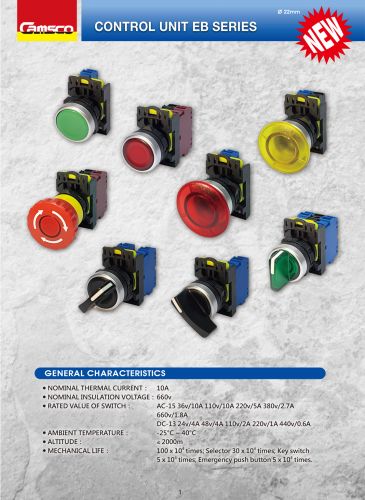

INTRODUCTION

Nominal Thermal Current: 10A
Nominal Insulation Voltage: 660V
Rated Value Of Switch: AC-15 36v/10A 110v/10A 220v/5A 380v/2.7A 660v/1.8A
DC-13 24v/4A 48v/4A 110v/2A 220v/1A 440v/0.6A
Ambient Temperature: -25°C ~ 40°C
Altitude: ≤ 2000m
Mechanical Life: 100 x 10⁴ times; Selector 30 x 10⁴ times; Key switch 5 x 10⁴ times; Emergency push button 5 x 10⁴ times.

Inquiry

Back

Product Specification

SPECIFICATION

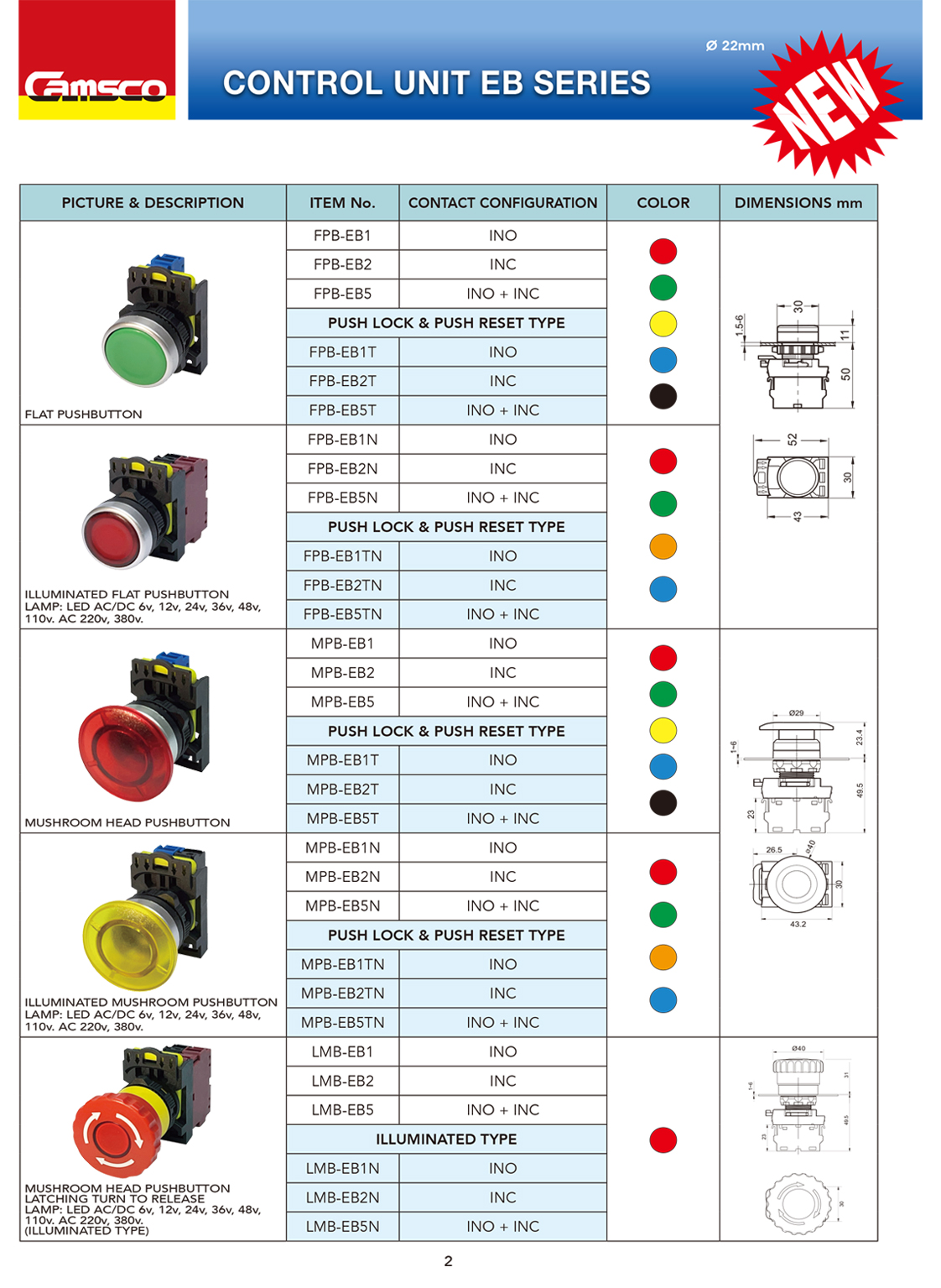

FPB-EB1
Contact Configuration: INO
FPB-EB2
Contact Configuration: INC
FPB-EB5
Contact Configuration: INO + INC
FPB-EB1T
Push Lock & Push Reset Type
Contact Configuration: INO
FPB-EB2T
Push Lock & Push Reset Type
Contact Configuration: INC
FPB-EB5T
Push Lock & Push Reset Type
Contact Configuration: INO + INC
FPB-EB1N
Push Lock & Push Reset Type
Contact Configuration: INO
FPB-EB2N
Push Lock & Push Reset Type
Contact Configuration: INC
FPB-EB5N
Push Lock & Push Reset Type
Contact Configuration: INO + INC
FPB-EB1TN
Push Lock & Push Reset Type
Contact Configuration: INO
FPB-EB2TN
Push Lock & Push Reset Type
Contact Configuration: INC
FPB-EB5TN
Push Lock & Push Reset Type
Contact Configuration: INO + INC
MPB-EB1
Push Lock & Push Reset Type
Contact Configuration: INO
MPB-EB2
Push Lock & Push Reset Type
Contact Configuration: INC
MPB-EB5
Push Lock & Push Reset Type
Contact Configuration: INO + INC
MPB-EB1T
Push Lock & Push Reset Type
Contact Configuration: INO
MPB-EB2T
Push Lock & Push Reset Type
Contact Configuration: INC
MPB-EB5T
Push Lock & Push Reset Type
Contact Configuration: INO + INC
MPB-EB1N
Push Lock & Push Reset Type
Contact Configuration: INO
MPB-EB2N
Push Lock & Push Reset Type
Contact Configuration: INC
MPB-EB5N
Push Lock & Push Reset Type
Contact Configuration: INO + INC
MPB-EB1TN
Push Lock & Push Reset Type
Contact Configuration: INO
MPB-EB2TN
Push Lock & Push Reset Type
Contact Configuration: INC
MPB-EB5TN
Push Lock & Push Reset Type
Contact Configuration: INO + INC
LMB-EB1
Push Lock & Push Reset Type
Contact Configuration: INO
LMB-EB2
Push Lock & Push Reset Type
Contact Configuration: INC
LMB-EB5
Push Lock & Push Reset Type
Contact Configuration: INO + INC
LMB-EB1N
Illuminated Type
Contact Configuration: INO
LMB-EB2N
Illuminated Type
Contact Configuration: INC
LMB-EB5N
Illuminated Type
Contact Configuration: INO + INC

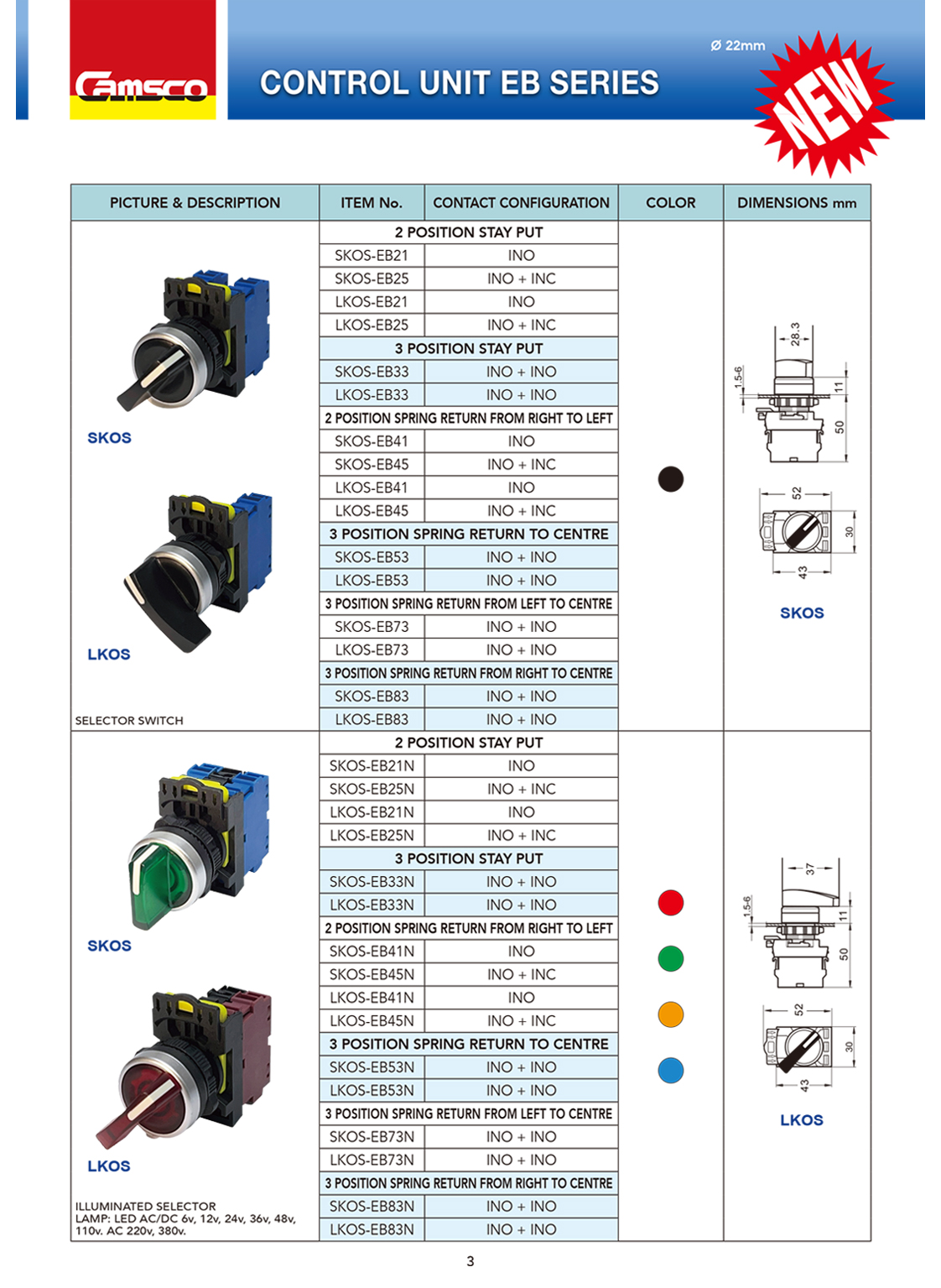

SKOS-EB21
2 Position Stay Put
Contact Configuration: INO
SKOS-EB25
2 Position Stay Put
Contact Configuration: INO + INC
LKOS-EB21
2 Position Stay Put
Contact Configuration: INO
LKOS-EB25
2 Position Stay Put
Contact Configuration: INO + INC
SKOS-EB33
3 Position Stay Put
Contact Configuration: INO + INO
LKOS-EB33
3 Position Stay Put
Contact Configuration: INO + INO
SKOS-EB41
2 Position Spring Return From Right To Left
Contact Configuration: INO
SKOS-EB45
2 Position Spring Return From Right To Left
Contact Configuration: INO + INC
LKOS-EB41
2 Position Spring Return From Right To Left
Contact Configuration: INO
LKOS-EB45
2 Position Spring Return From Right To Left
Contact Configuration: INO + INC
SKOS-EB53
3 Position Spring Return To Centre
Contact Configuration: INO + INO
LKOS-EB53
3 Position Spring Return To Centre
Contact Configuration: INO + INO
SKOS-EB73
3 Position Spring Return From Left To Centre
Contact Configuration: INO + INO
LKOS-EB73
3 Position Spring Return From Left To Centre
Contact Configuration: INO + INO
SKOS-EB83
3 Position Spring Return From Right To Centre
Contact Configuration: INO + INO
LKOS-EB83
3 Position Spring Return From Right To Centre
Contact Configuration: INO + INO
SKOS-EB21N
2 Position Stay Put
Contact Configuration: INO
SKOS-EB25N
2 Position Stay Put
Contact Configuration: INO + INC
LKOS-EB21N
2 Position Stay Put
Contact Configuration: INO
LKOS-EB25N
2 Position Stay Put
Contact Configuration: INO + INC
SKOS-EB33N
3 Position Stay Put
Contact Configuration: INO + INO
LKOS-EB33N
3 Position Stay Put
Contact Configuration: INO + INO
SKOS-EB41N
2 Position Spring Return From Right To Left
Contact Configuration: INO
SKOS-EB45N
2 Position Spring Return From Right To Left
Contact Configuration: INO + INC
LKOS-EB41N
2 Position Spring Return From Right To Left
Contact Configuration: INO
LKOS-EB45N
2 Position Spring Return From Right To Left
Contact Configuration: INO + INC
SKOS-EB53N
3 Position Spring Return To Centre
Contact Configuration: INO + INO
LKOS-EB53N
3 Position Spring Return To Centre
Contact Configuration: INO + INO
SKOS-EB73N
3 Position Spring Return From Left To Centre
Contact Configuration: INO + INO
LKOS-EB73N
3 Position Spring Return From Left To Centre
Contact Configuration: INO + INO
SKOS-EB83N
3 Position Spring Return From Right To Centre
Contact Configuration: INO + INO
LKOS-EB83N
3 Position Spring Return From Right To Centre
Contact Configuration: INO + INO

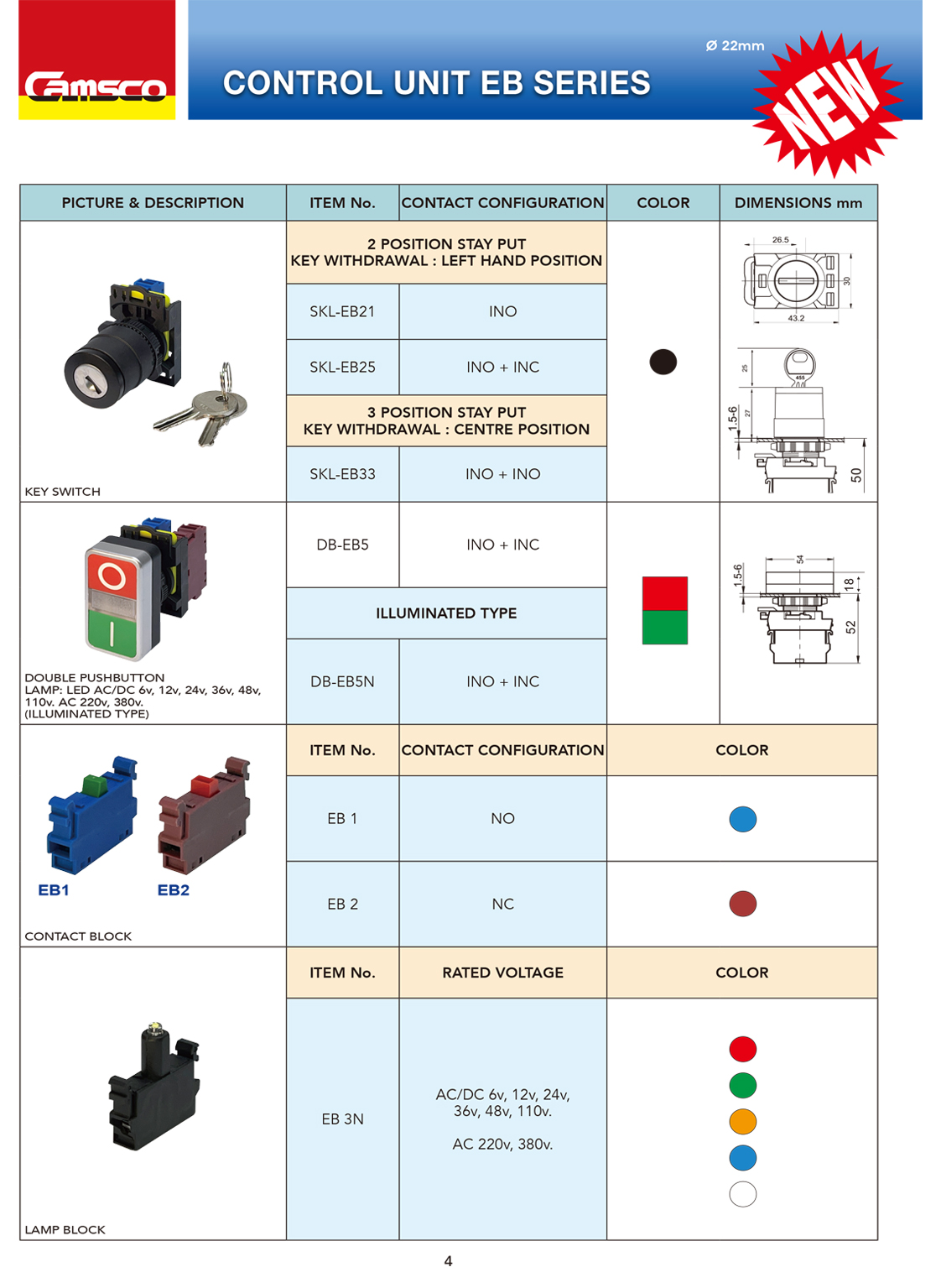

SKL-EB21
2 Position Stay Put
Key Withdrawal : Left Hand Position
Contact Configuration: INO
SKL-EB25
2 Position Stay Put
Key Withdrawal : Left Hand Position
Contact Configuration: INO + INC
SKL-EB33
3 Position Stay Put
Key Withdrawal : Centre Position
Contact Configuration: INO + INO
DB-EB5
3 Position Stay Put
Key Withdrawal : Centre Position
Contact Configuration: INO + INC
DB-EB5N
Illuminated Type
Contact Configuration: INO + INC
EB 1
Contact Configuration: NO
EB 2
Contact Configuration: NC
EB 3N
Rated Voltage: AC/DC 6v, 12v, 24v, 36v, 48v, 110v. AC 220v, 380v.
