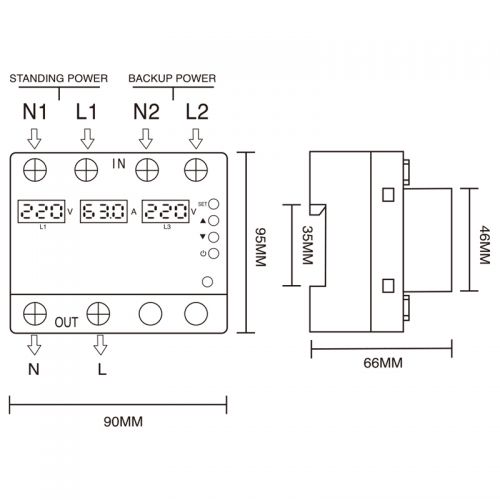

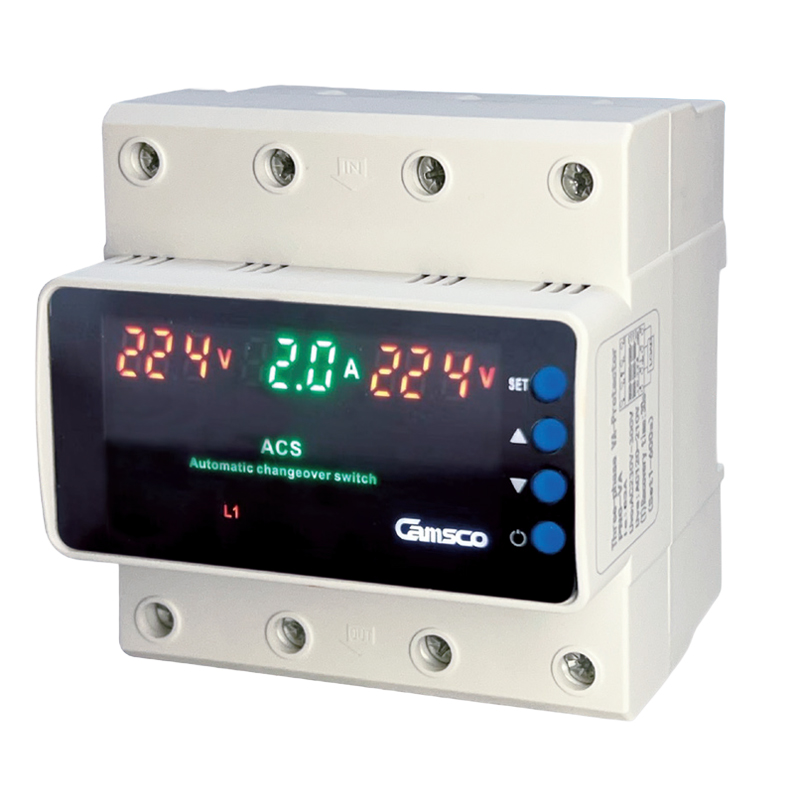

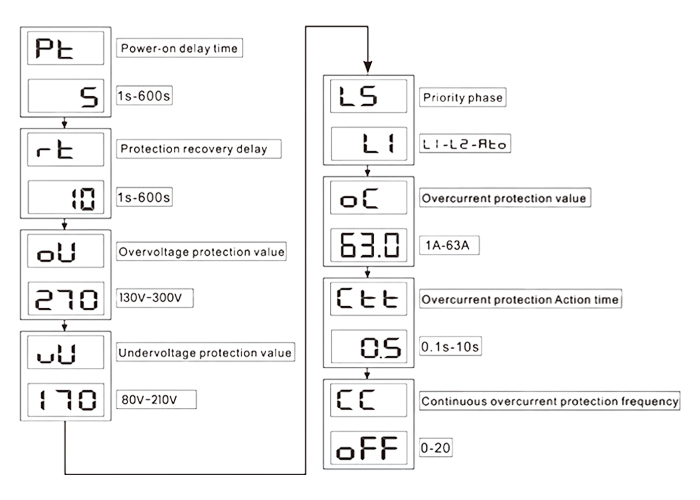

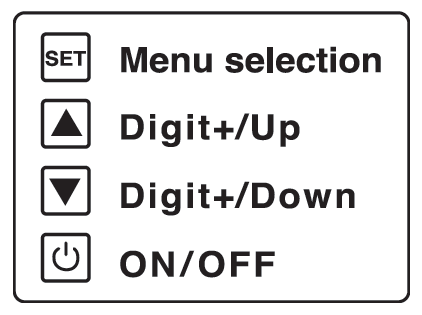

Automatic Changeover Switch ACS-VP1 HomeProductsAutomatic Transfer SwitchAutomatic Changeover Switch ACS-VP1 Automatic Changeover Switch ACS-VP1 Inquiry Back Out of stock., contact us Product Description MAIN FEATURES Automatic changeover switch Under voltage & Over voltage protection Over current protection TECHNICAL DATA Over voltage: AC 270v (AC 130V~300V adjustable) Under voltage: AC 170v (AC 80V~210V adjustable) Voltage hysteresis: 5V Over current protection: 1-63A adjustable 1. Number of continuous over current protection (cc setup) 2. Current failure: Start the relay after manual reset (press key ⏻) Ambient: -5°C ~ +40°C Product Feature SETTING INSTRUCTIONS Long press the down "SET" keys for 5s enter the SET state. Press the UP and DOWN keys to modify the over voltage, under voltage, current. press the SET key to save. Product Specification PARAMETER SETTING Standing power (priority phase) / Back up power (setup l5) When a power outage: over voltage or under voltage; failure occurs in the standing power, Acs-vp1 will switch from the standing power supply to the backup power supply to continue supplying power. When the standing power supply returns to normal, Acs-vp1 will switch from the backup power supply to the standing power supply.
