INTRODUCTION Digital Panel Meter

  • DM-96 SERIES (96x96mm)
  • DM-9648 SERIES (96x48mm)
  • DM-80 SERIES (80x80mm)
  • DM-72 SERIES (72x72mm)

Product Description
SPECIFICATION
Item No :
  • DM-96ACA, DM-9648ACA, DM-80ACA, DM-72ACA
    Function : Ammeter
    0.56 inch LED Display
  • DM-96ACV, DM-9648ACV, DM-80ACV, DM-72ACV
    Function : Voltmeter
    0.56 inch LED Display

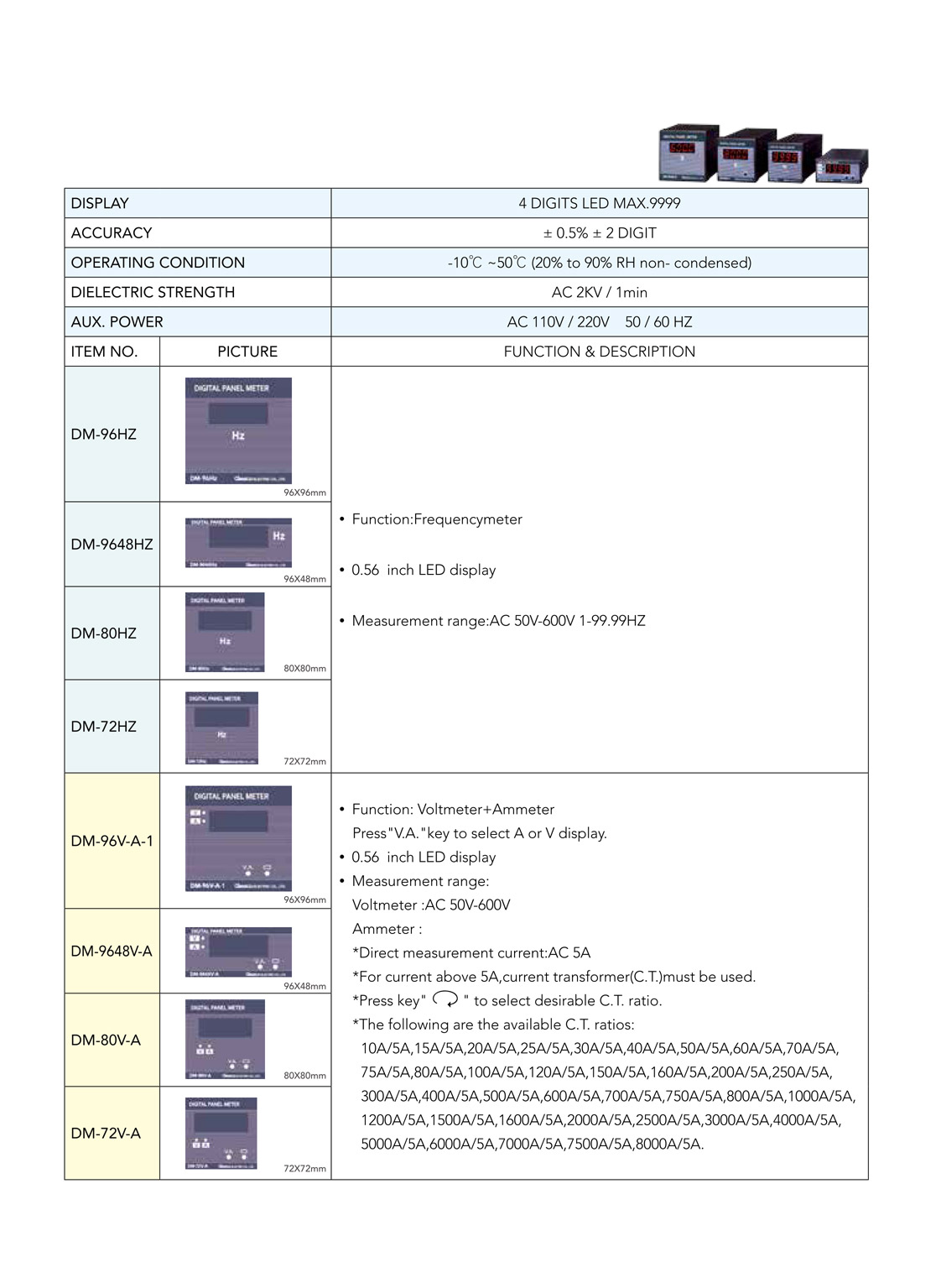

  • DM-96HZ, DM-9648HZ, DM-80HZ, DM-72HZ
    Function : Frequencymeter
    0.56 inch LED Display
  • DM-96V-A-1, DM-9648V-A, DM-80V-A, DM-72V-A
    Function : Voltmeter + Ammeter
    0.56 inch LED Display

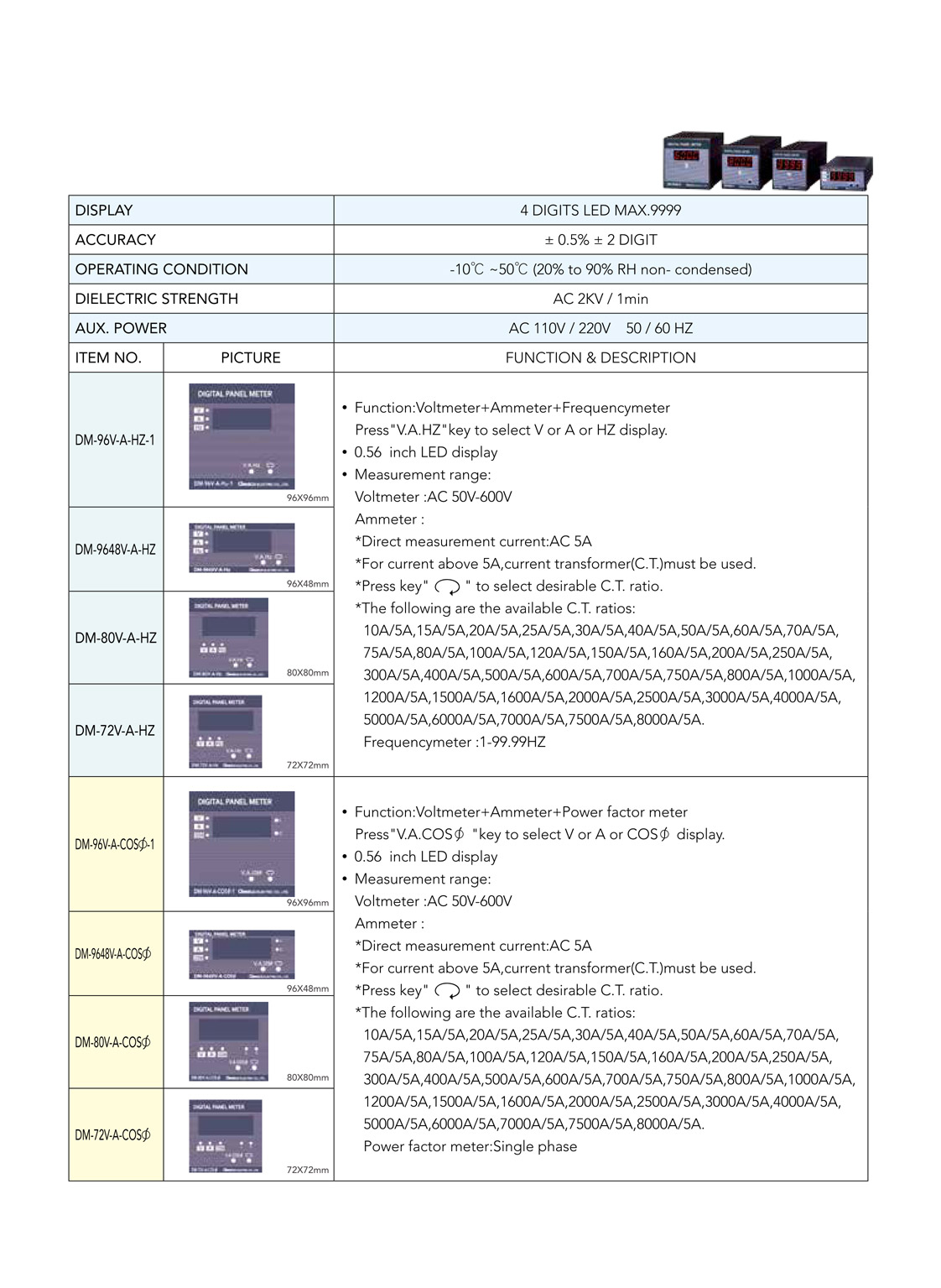

  • DM-96V-A-HZ-1, DM-9648V-A-HZ, DM-80V-A-HZ, DM-72V-A-HZ
    Function : Voltmeter + Ammeter + Frequencymeter
    0.56 inch LED Display
  • DM-96V-A-COSφ-1, DM-9648V-A-COSφ, DM-80V-A-COSφ, DM-72V-A-COSφ
    Function : Voltmeter + Ammeter + Power factor meter
    0.56 inch LED Display

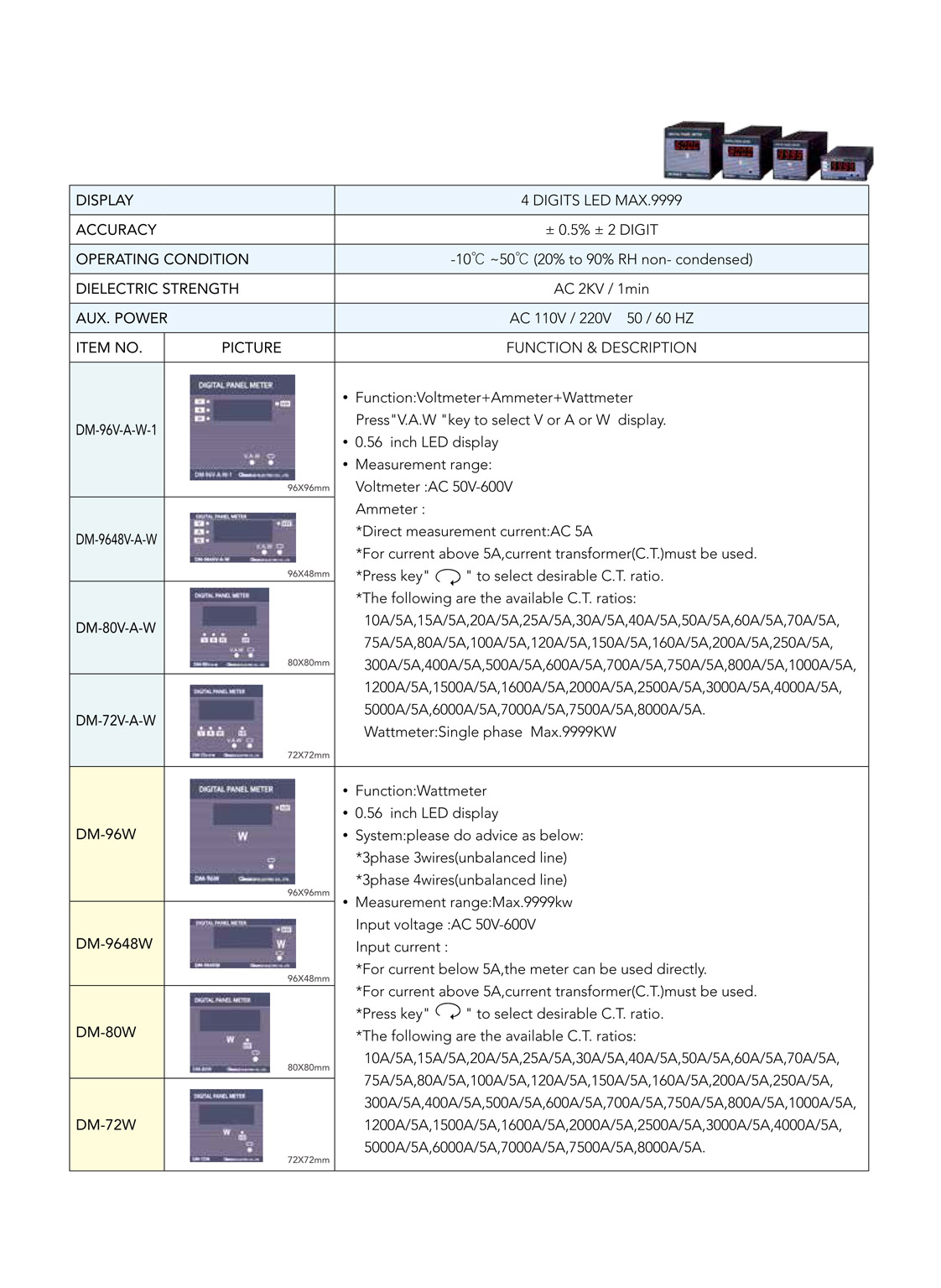

  • DM-96V-A-W-1, DM-9648V-A-W, DM-80V-A-W, DM-72V-A-W
    Function : Voltmeter + Ammeter + Wattmeter
    0.56 inch LED Display
  • DM-96W, DM-9648W, DM-80W, DM-72W
    Function : Wattmeter
    0.56 inch LED Display
  • DM-96COSφ, DM-9648COSφ, DM-80COSφ, DM-72COSφ
    Function : Power factor meter
    0.56 inch LED Display
  • DM-96V-A
    Function : Voltmeter + Ammeter
    Display V-A simultaneously.
    0.56 inch LED Display (2 windows)

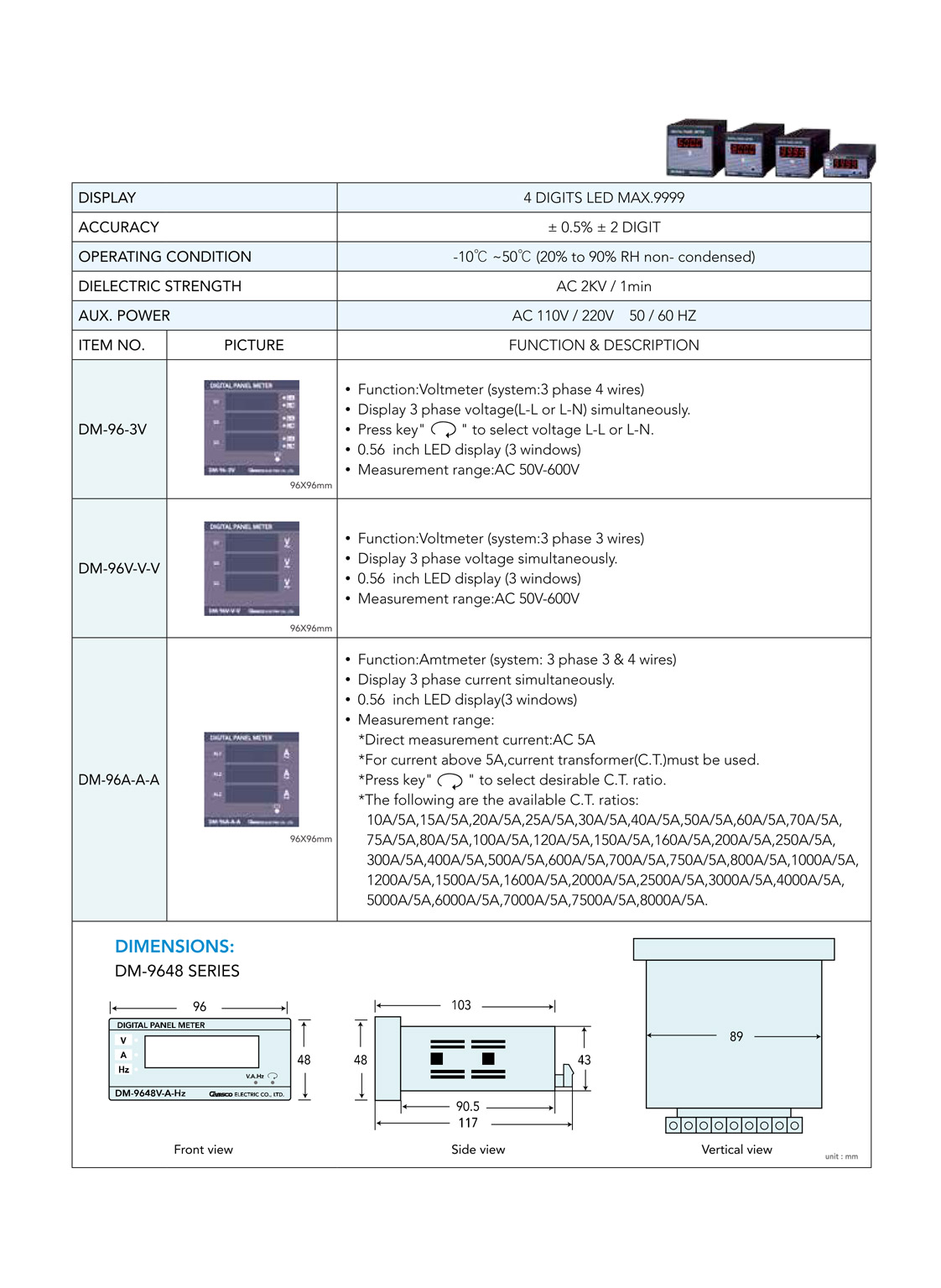

  • DM-96-3V
    Function : Voltmeter (system 3 phase 4 wires)
    Display 3 phase voltage (L-L or L-N) simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96-V-V-V
    Function : Voltmeter (system 3 phase 3 wires)
    Display 3 phase voltage simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96-A-A-A
    Function : Voltmeter (system 3 phase 3 & 4 wires)
    Display 3 phase current simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96-3A/V
    Function : Voltmeter + Ammeter (system 3 phase 4 wires)
    Display 3 phase current simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96V-A-HZ
    Function : Voltmeter + Ammeter + Frequencymeter
    Display V-A-HZ simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96V-A-COSφ
    Function : Voltmeter + Ammeter + Power factor meter
    Display V-A-COSφ simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96V-A-W
    Function : Voltmeter + Ammeter + Wattmeter
    Display V-A-W simultaneously.
    0.56 inch LED Display (3 windows)
  • DM-96-4M
    Function : Voltmeter + Ammeter (system 3 phase 4 wires)
    Display 3 phase current and 1 phase voltage simultaneously.
    0.39 inch LED Display (4 windows)
  • DM-96-5M
    Function : Voltmeter + Ammeter + Wattmeter + Power factor meter + Frequencymeter (system 3 phase 4 wires)
    Display 3 phase current and 1 phase voltage and HZ or KW or COSφ simultaneously.
    0.39 inch LED Display (5 windows)
